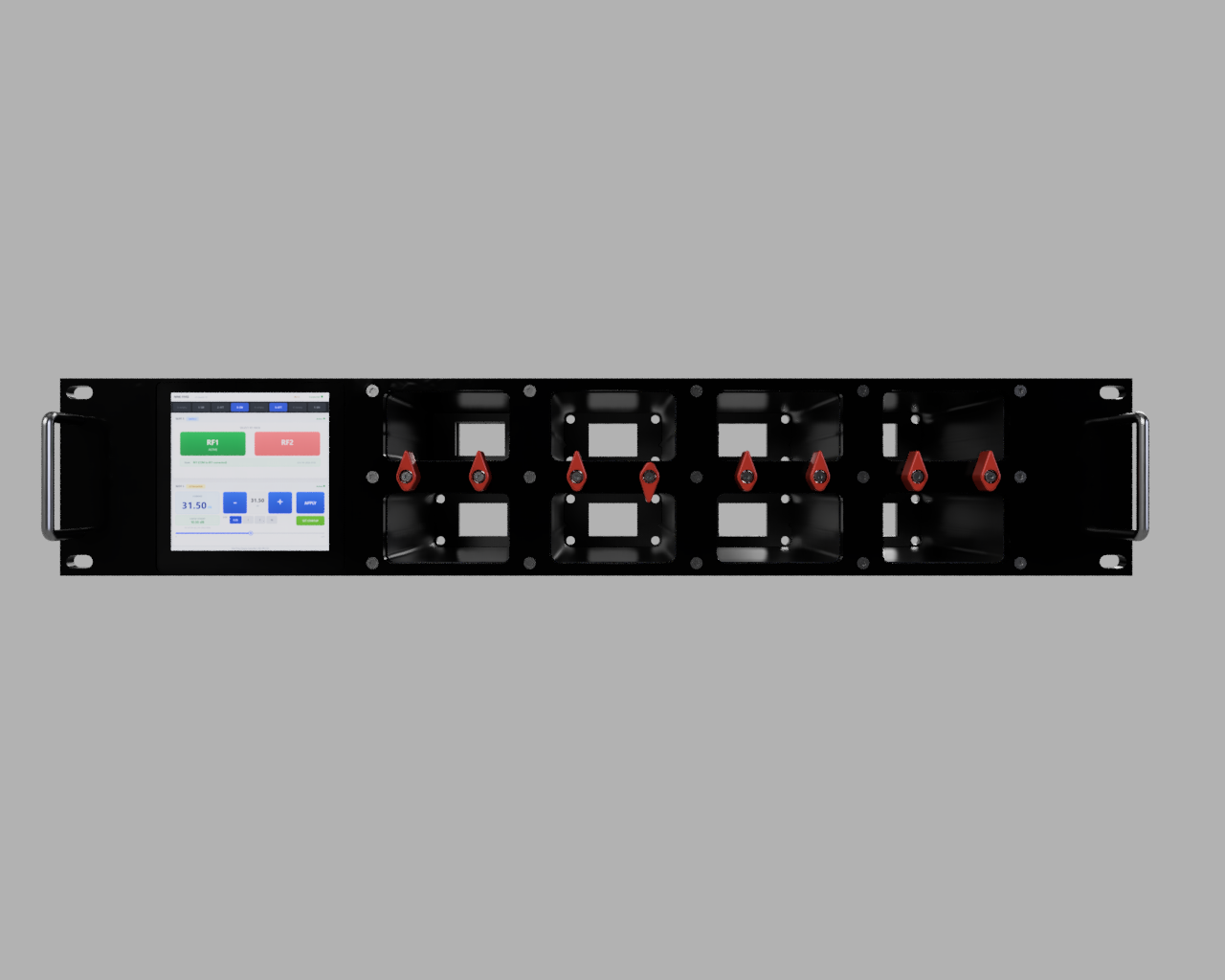

• PD8X 2U rack-mount backplane, front view, with the touchscreen on the left and eight empty module slots

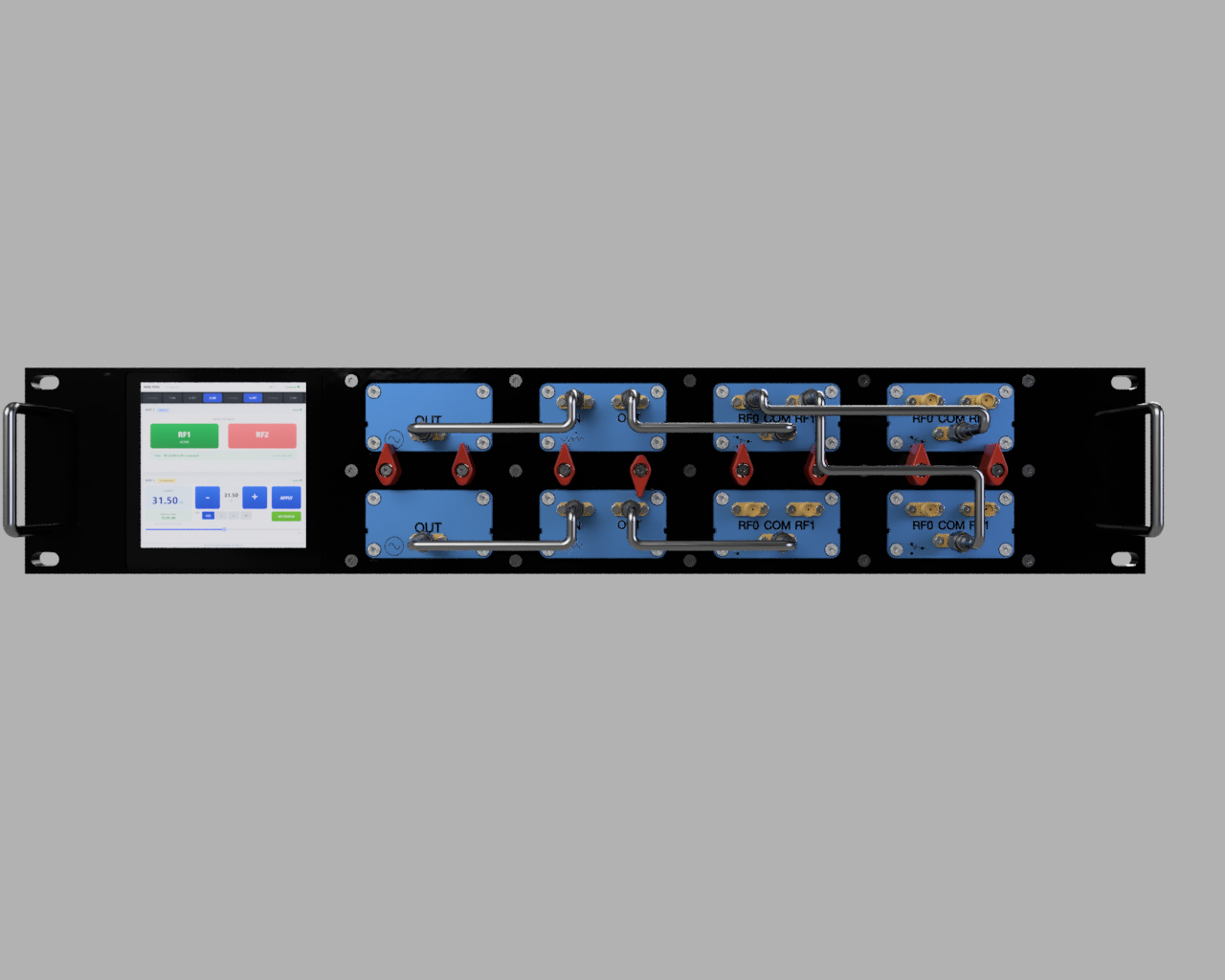

  • PD8X front view with eight Nine Fives modules installed and connected by semi-rigid RF cables

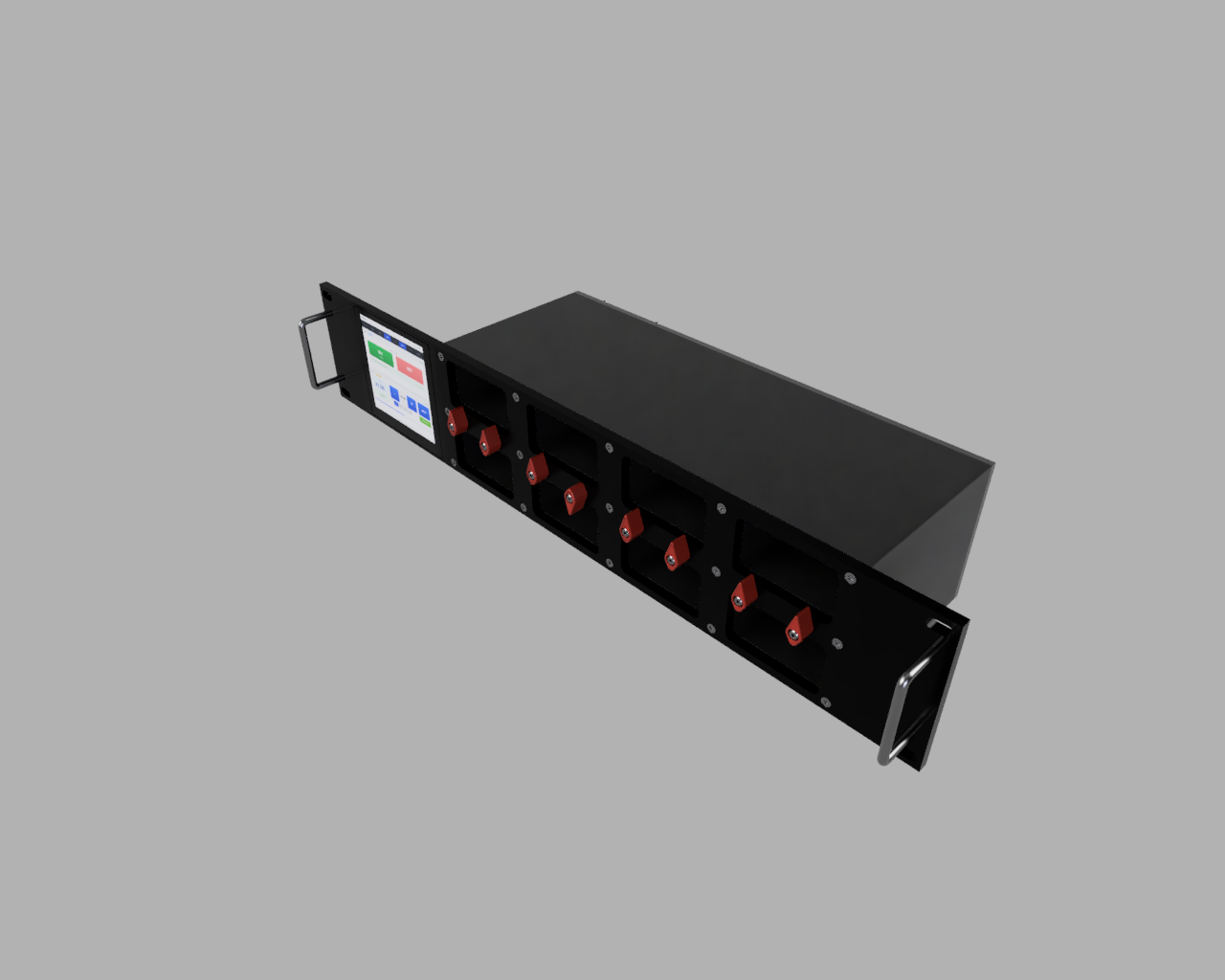

  • PD8X 2U rack-mount backplane at an angle, showing the touchscreen, the empty module slots and the enclosure depth

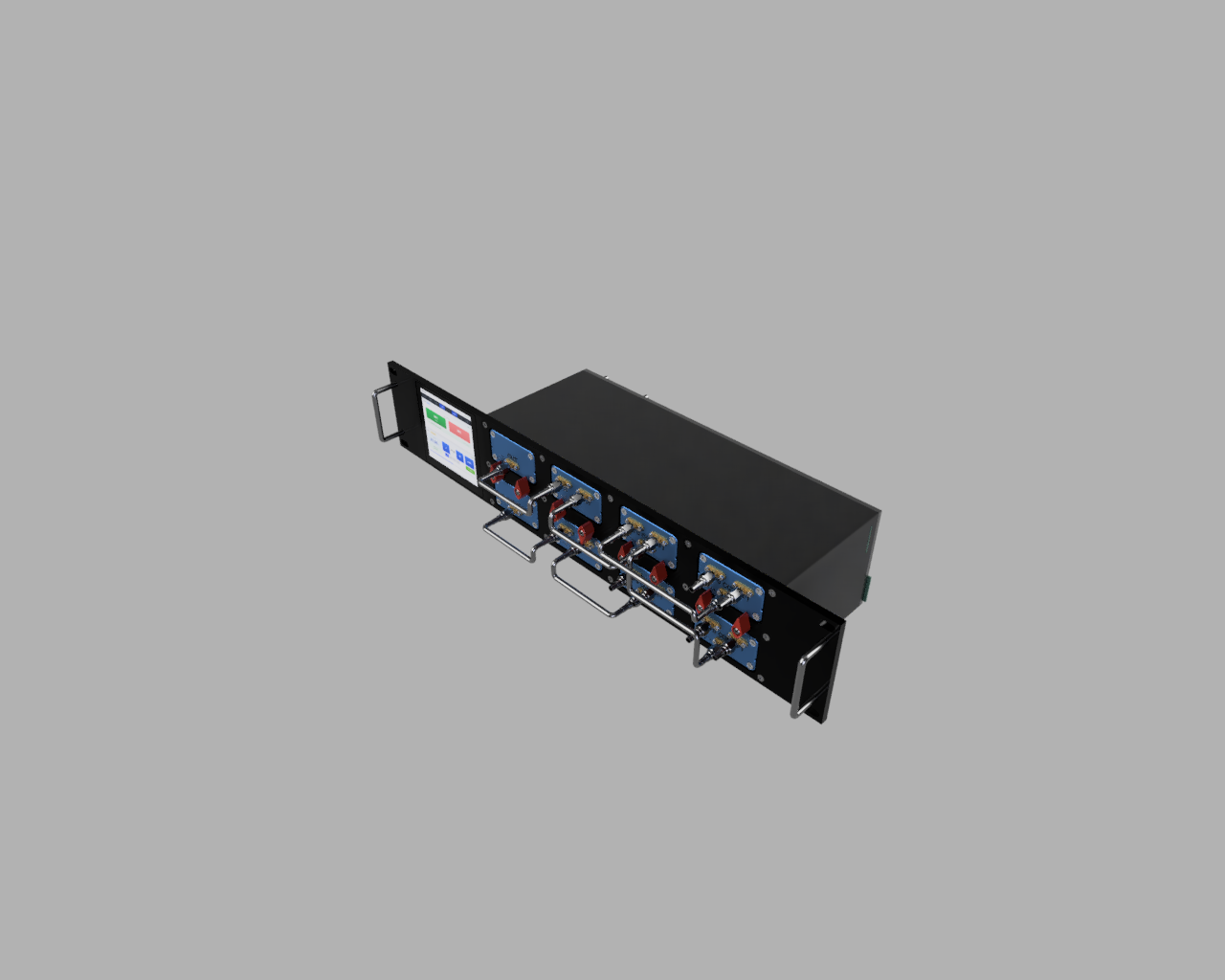

  • PD8X at an angle with eight modules installed and semi-rigid RF cables routed across the front panel
1 4

Nine Fives

PD8X

PD8X

The PD8X is a power-over-ethernet enabled backplane and network switch.

  • Local control: integrated LCD touchscreen display
  • Automatic module detection: uses standard network-layer technology like DHCP option 82 and mDNS to recognize where and when Nine Fives compatible slot modules are plugged in or removed
  • Rack networking: with our NineVue rack configuration software, 1 or more PD8X backplanes can be networked together directly via their touch panels or from the UI
  • No manual setup: no manual network configuration management is necessary
View full details
